The perfect starting point

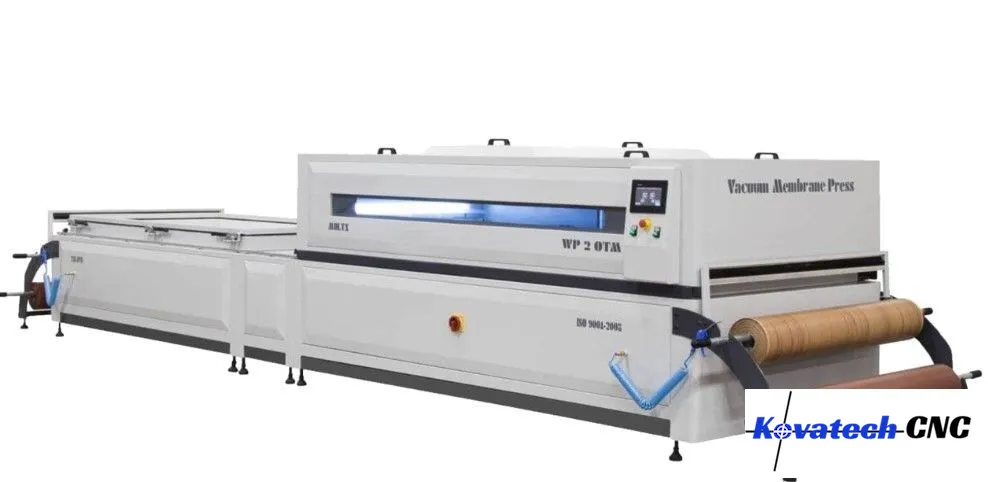

VP2 OTM is a PVC foil laminating machine with a high end technology manufactured by Maksertam.
It is a Professional machine uses PVC foil and GPET for lamination of both 3D and flat MDF, plywood, natural wood materials
Features
• WP 2 OTM is a PVC foil laminating machine with a high end technology.
• It is a Professional machine uses PVC foil and GPET for lamination of both 3D and flat MDF, plywood, natural wood materials
• You can laminate doors, wardrobes, kitchen cabinets, bathroom cabinets or use the machine in thermoforming.
• The process starts with high performance Quartz resistor rods and ends with negative suction pressure.
• WP 2 OTM Vacuum Membrane press machine comes with a user friendly LCD control panel.
• It provides a maximum production speed with full automatically screen and cooling fan system.
TABLE T1:1400x2400-DEPTH:75 MM - T2:1400x3000 - DEPTH:45 MM
HEATING SYSTEM 220V 600W 620 MM GLASS TUBE RESISTANCE
VACUUM SYSTEM 100 M3/HOUR ULTIMATE PRESSURE 0.5 BAR
HEAT MEASUREMENT SENSOR INFRARED HEAT SENSOR
PVC LOADING UNIT SPECIAL DESING
GUIDE SYSTEM HARDENED LINEAR GUIDE
FAILURE WARNING SYSTEM AUDIBLE AND VISUAL
OPARATOR PANEL TOUCH PANEL 7 "
GEAR SYSTEM MOD2 20x20 RACK AND PINION GEAR - Z:32
ELECTRICAL EQUIPMENT PROFESSIONAL
TABLE FRAME MANUEL TABLE FRAME
MOVING MOTOR 0.37 KW 1400 DD R:1/10 S40 TURBINE MOTOR
OPERATING TIME 3-4 MINUTES
WEIGHT -LOADING SIZE 1700 KG - W: 1800 L: 5800 H: 2000
TOTAL ENERGY CONSUMPTION 8 BAR 30 KW
ELECTRICITY AND AIR REQUIREMENT 380 V 3 PHASE 30 KW AND 8 BAR AIR
