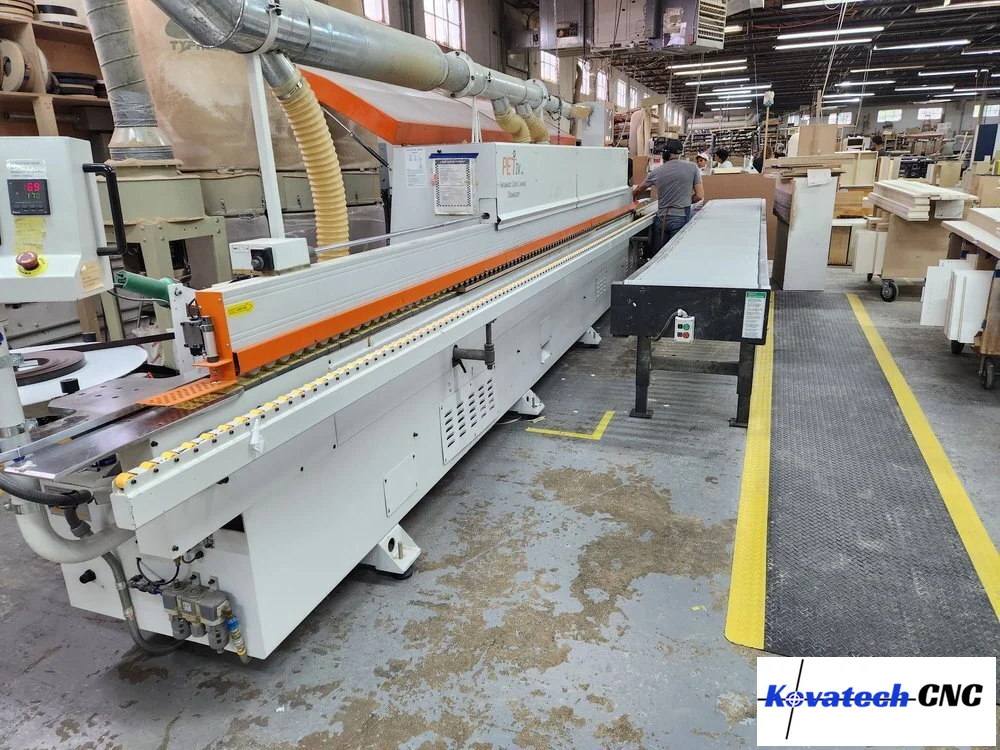

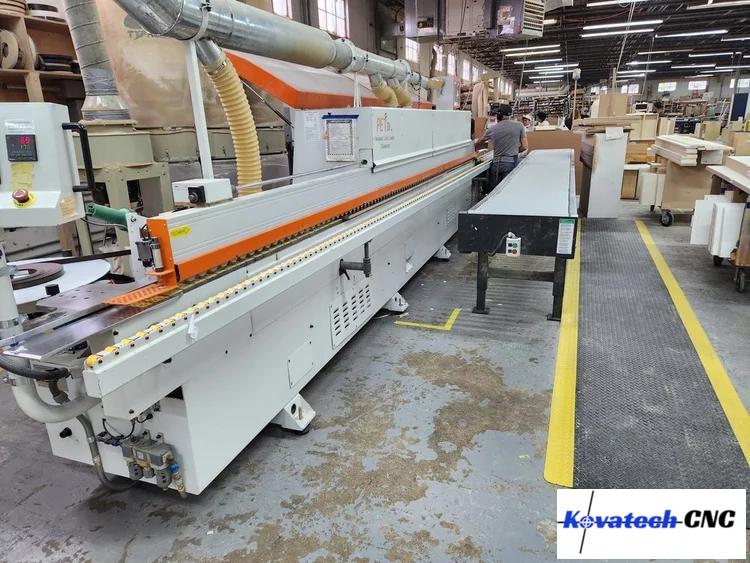

Used 2016 Pet IV Pet IV | Edgebander / Plaquese de Chant

Description

Premill Station  (2) 3-hp high freq. motors @ 12,000 rpm  Diamond counter-rotating compression milling heads

Glue Station  1-hp motor  Non-stick coated glue pot

Strip Feed & Guillotine  Automatic length trimming for coil-type edgebanding  Stand-alone guillotine control switch for strip feed

4-Roller Pressure Station  (4) pneumatic controlled pressure rollers  1st roller independently driven

End Trim Station - 2 Motor  (2) 0.5-hp high freq. motors @ 12,000 rpm  Precision linear prismatic bearing guides  Bevel capability: 1 - 15°

1st Super Finish Station with (*)PQC  (2) 1.5-hp high freq. motors @ 18,000 rpm  Tiltable chamfer: 0 - 45°

2nd Super Finish Station with PQC  (2) 1.5-hp high freq. motors @ 18,000 rpm  Air blow-off on top trimmer  Tiltable chamfer 0 - 45°

Corner Rounding Station - 2 Motor  (2) 0.5-hp high freq. motors @ 12,000 rpm  Feed speed: 12 & 16 m/min.

Radius Profile Scraper Station with PQC  High production unit for smoothing radius and chamfered PVC edges: up to 3mm  (2) vertical and horizontal copy wheels

Flat Scraper Station  Pneumatically controlled from PLC

Buffing Station  (2) 0.5-hp motors
