Dual Arm Contour Bander with Three-Station Workflow

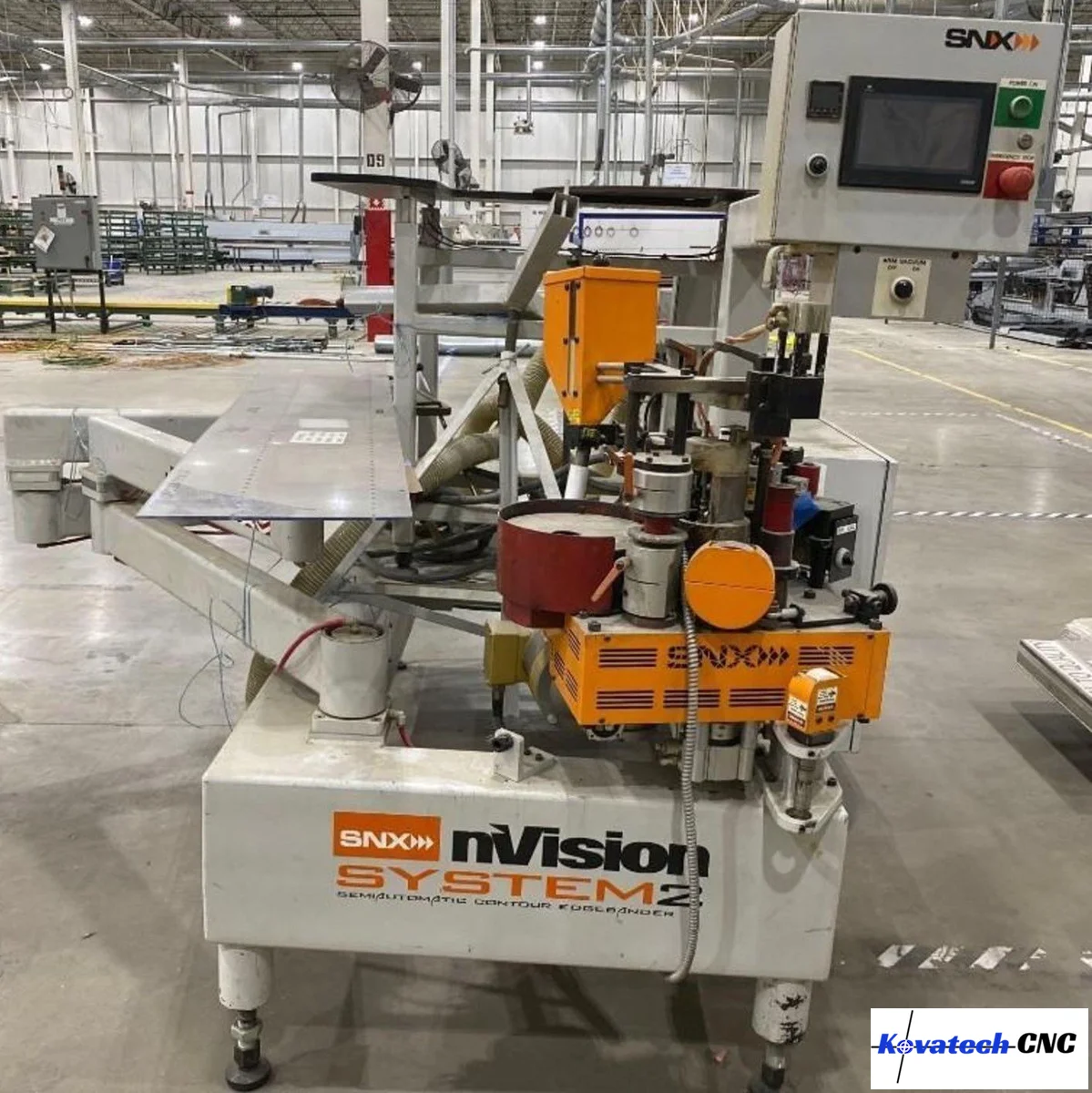

The SNX nVision G2 curved edgebander is designed to take shaped part banding throughput to the next level. It's based on our ground-breaking original SNX nVision G1 machine, and comes with all the features and its patented technologies.

The SNX nVision G2 features an extended base frame to accommodate more area for banding and trimming at the same time. That means non-stop production. A foot pedal activated mid-point transfer station accepts the finished banded part, raises it from the vacuum pod and then lowers the part onto the trimming pod arm at the press of a foot pedal.

• Specifications:

Curved (Contour) Edgebander to allow 360° edgebanding to contoured (shaped) panels.

Edgebanding is applied automatically as part is advanced past the edgebanding workstations via turntable. Reduced learning curve/expertise for operation as operator simply loads part to vacuum turntable, then activates the edgebanding cycle.

• Working Capacity:

The "nVision" Contour Bander can band a minimum material size of 150 mm (6") diameter.

Max. material size: 2,400 x 2,400 mm (94" x 94"); max. material weight: up to 104.5 kG (230 Lbs). Material thickness from 10 - 60 mm (0.4" - 2.36"); banding thickness from 0.5 mm thin tape w/low temp adhesive - 3 mm tape.

• Radii Capacity:

Min. internal (inside) radius 80 mm (3.14"); min. external (outside) radius 30 mm (1'-18") based on 1 mm thick edge tape.

● Edgebanding thickness: 1 mm, min. = R 30 mm.

● Edge thickness: 2 mm, min. = R 50 mm.

● Edge thickness 3 mm, min. = R 80 mm.

● Panel thickness 10 - 60 mm with edge thickness 1 mm. ● Panel thickness 10 - 60 mm with edge thickness 2 mm. ● Panel thickness 10 - 45 mm with edge thickness 3 mm.

IMPORTANT: ALL minimum & maximum radii are affected by tape thickness, quality of adhesive, and edgebanding being applied. Radius size dramatically affected by adhesive temperature and quality of edge tape, semi or rigid.

• Equipped with:

Thermal-regulated glue pot heated via (2) 800-Watt heating elements with electronic temperature controls; holds up to 1 kG (2.2 Lbs) of granules.

(2) Pressure rollers to copy the shape of the piece; automatic guillotine for coiled material up to 3 mm

(0.11") thickness & 57 mm height (0.125" - 2.25").

• Features: Laser for easy length identification with closed parts without the need for additional length measurement.

The Laser also detects a tight radius and will automatically slow the speed + resume the set speed when the detected radius has passed.

The machine is still equipped with the foot pedal for manual control/intervention.

Motorized turntable for automated edgebanding application to large panels.

Holding or support arm has a large interchangeable vacuum pod to secure panels for edging and trimming. NOTE: Panels can be irregular in shape but must conform to the min. tolerances of inner & outer radii and fit within the work area.

• Complete with:

● Top & Bottom Trimming unit. ● Centralized control panel with individual controls for all stations to enable manual feeding of panels if desired. ● Banding Station. ● Edgebander Coil Stand. ● Standard size vacuum pod for articulated arm. ● 80 mm (3") Dia. dust extraction outlet. ● Foot pedal activation/deactivation control. ● Larger feed roller. ● QC Glue tank with sensor.
